Model #: NAV-9RS

9 STP NAV, R TRD, AD, WA,STD RAILS

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

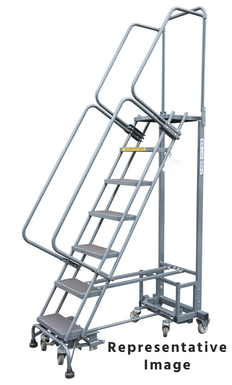

Unique patented design & engineering specifically designed to provide easy access to narrow aisles and tight spaces. A safer option to "A" frame ladders, the navigator includes handrails and a more gradual climbing slope. The patented weight actuated lockstep gives the ladder a very secure feeling when climbing. Designed to provide increased safety, reducing accidents and worker's compensation claims. Typical end use includes: • stores that up-stock product on the showroom floor • retail stores with tight aisles • warehouse applications • stockrooms • storage areas
Features:
  • 450 Lbs. Capacity
  • 14" Deep Top Step
  • Available In 7-10 Steps
  • All-directional Maneuverability
  • Patented Weight-activated Lockstep
  • Standard Fixed Rails Or Folding Side Rails
  • Ships Kd In A Box, Reducing Freight Cost And Minimizing The Risk Of Freight Damage
  • Available Fully Assembled, Specify (su) Set-up
  • Gray Powder Coat Finish
  • Complies With Applicable OSHA & ANSI Standards
  • CAL OSHA Available
  • Base W x L: 26 x 63
  • Category: Ladders
  • Color: Gray
  • Country of Origin: US
  • Eligible for UPS: No
  • Entrance Chain: No
  • Freight Class: 400
  • Lockstep Type: Weight Actuated
  • Overall Height Inches: 93
  • Overall Packaging Height: 20
  • Overall Packaging Length: 116
  • Overall Packaging Width: 26
  • Recommended Freight Method: LTL
  • Shipping Dims. LxWxH: 116 x 26 x 20
  • Shipping Weight: 228
  • Skid Dims: N/A
  • Slope: 56 Degree Slope
  • Step Width: 16
  • Steps: 9
  • Sub: 2
  • Subcategory/Type: Navigator Series Ladders
  • Top Step Height Inches: 90
  • Tread: Abrasive Mat
