  • GUARDIAN LIFT N SPIN SCISSOR TABLE 2K Capacity 40x55 Foot Controls
Pinch To Zoom
Model #: BM-GLS-2K-35R-4055-F

GUARDIAN LIFT N SPIN SCISSOR TABLE 2K Capacity 40x55 Foot Controls

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

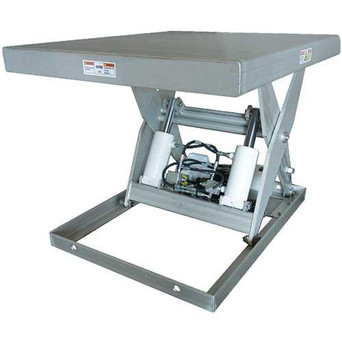

With a lowered height of only 4. 25", The lift-n-spin can be loaded with a manual or electric pallet truck. This is accomplished by the exclusive auto-transition plate which provides a smooth surface from the ramp onto the rotating top. Once the lift is raised 1/4" the plate automatically lowers to allow the spinning of the rotating top. When the table is fully lowered, the plate automatically raises again to provide a smooth surface to load the next pallet. The lift-n-spin has a raised height of 35" providing an ideal height for work positioning applications. The rotating top avoids the need to walk around or reach across. The remote power unit features a 1 hp motor. This is a highly efficient and quiet pump motor combination. A three-button control box has 115-volt single phase and runs on a 20 amp circuit. 230/460 3 Phase is optional.
  • Meets and exceeds both U.S. (ANSI) and European safety standards
  • Upper platform safety perimeter bar prevents descent on contact
  • Electric circuit reset button in case the safety perimeter is actuated
  • Low-tension (24V) control box with up-down buttons
  • External power pack equipped with a relief valve against overloading
  • Remote Power Unit supplied with 8' long hoses
  • Compensated flow valve for controlling lowering speed
  • Mechanical blocks for safe maintenance operations
  • 115 voltage single phase standard
  • Upper limit switch
  • Single acting cylinders with drainage system and check valve
  • Safety clearance between scissors to prevent trapping during operation
  • Self-lubricating bushings on pivot points
  • Removable lifting eye(s) to facilitate handling and installation
  • Category: Material Handling Equipment
  • Eligible for UPS: No
  • Final Weight: 910
  • Freight Class: 70
  • Hand Controls / Foot Controls: Foot Controls
  • Height Lowered: 4.25
  • LPI Part Number: LPBL-20-2-LS
  • Lockstep Type: N/A
  • Overall Packaging Height: 25
  • Overall Packaging Length: 60
  • Overall Packaging Width: 45
  • Platform Height: 35
  • Platform Length: 55
  • Platform LxW: 55" x 39.5"
  • Platform Width: 39.5
  • Recommended Freight Method: LTL
  • Ship From Location: Waukesha
  • Shipping Dims. LxWxH: 60 x 45 x 25
  • Shipping Weight: 910
  • Skid Dims: 60 x 45 x 7
  • Skid Height: 7
  • Skid Length: 60
  • Skid Width: 45
  • Sub: 4.00
  • Subcategory/Type: Lift Table
  • Time to raise: 18 sec
  • Tread: N/A
  • Voltage: 150
  • Weight Capacity: 2000
