  • Max-Compact Tilt Tables, 6K Capacity, 45 Degree Tilt, 23 x 48, Hand Controls
Pinch To Zoom
Model #: BM-CLT-6K-24R-2348-H

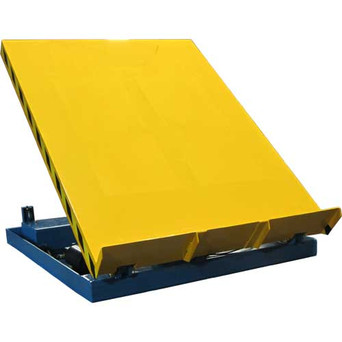

Max-Compact Tilt Tables, 6K Capacity, 45 Degree Tilt, 23 x 48, Hand Controls

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

Max-Compact Lift & Tilt tables are heavy-duty electro-hydraulic tilters with capacities of 2,000 to 6,000 lbs, with an angle of tilt to 45° with platform sizes of 24" x 48" to 48" x 48". The LPECTL series lifts and tilts within its own base frame, allowing the tilt operation to work within a minimum of floor area for maximum efficiency. The hydraulic system is powered up and down utilizing double acting cylinders. The leg rollers are entrapped within the base and platform frame to ensure maximum stability. The tilting mechanism of the LPECTL is a combined lift & tilt that occurs simultaneously with the lift actuation. This motion is achieved by a hinged steel extension added to the traditional scissor arms and fixed in position to the top platform. As the cylinder extends, the scissor arms close providing the lifting action while the hinged extension unfolds tilting the platform toward the operator.
  • Foot control switch
  • Tapered toe guards
  • Lowering beeper
  • Raised base
  • Remote power unit
  • Adj. tilt limit switch
  • Category: Material Handling Equipment
  • Eligible for UPS: No
  • Freight Class: 70
  • Hand Controls / Foot Controls: Hand Controls
  • Height Lowered: 10
  • LPI Part Number: LPECTT-60-45
  • Lockstep Type: N/A
  • Platform Height: 24.375
  • Platform Length: 48
  • Platform LxW: 48" x 23"
  • Platform Width: 23
  • Recommended Freight Method: LTL
  • Ship From Location: Waupun
  • Skid Height: 7
  • Sub: 4.00
  • Subcategory/Type: Lift Table
  • Tread: N/A
  • Weight Capacity: 6000
