The LPMC series of self propelled industrial lift carts is a hybrid product created by mounting a heavy duty transaxle drive system to our Max-Lift table. Additional changes are made to ensure the most stable and maneuverable lift cart possible. The lift cart features roller grip controls for moving while lifting is achieved by a handle mounted push button pendent control. In order to create a safe working environment, the lifting function is disabled during horizontal travel. The LPMC mobile lifts are built-to-order and are highly customizable. We can alter the lift table in numerous ways including custom platform sizes, shapes and top designs as well as the underlying electric platform truck's controls, size and caster arrangement.
Pinch To Zoom
Model #: BM-MM-3K-42.25R-2641-H

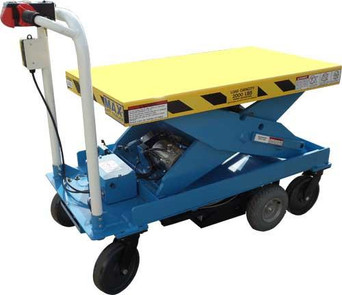

MAX MOBILE LIFT TABLE HAND CONTROL 26x41 3K CAPACITY
Log in for pricing
Shipping Details
Purchases are for commercial businesses only. We will not ship to personal residence.
- Heavy duty 24V DC electronics and drive motor
- 24V DC operating control voltage
- Constant pressure up-down push controls
- Cylinders with internal stops
- S.A.E. hoses and fittings
- Integral safety restraint maintenance bars
- NEMA1 prewired controls & electrical connectors
- Control box contains contactor and fuses
- Chrome plated shafting cylinder piston rods
- Surfaces degreased & descaled
- Surfaces finished with Yellow & Blue enamel
- Top with yellow & black safety strips
- Gear pump with check, relief, & solenoid valve
- Lift inactive while cart is in motion
- Limited speed while lift is raised
- Includes hydraulic oil and filter
- Roller variable speed forward/reverse controls
- Rabbit/turtle switch for top speed control
- Power on green light
- Flashing green light when battery is low
- Emergency stop bump switch
- Horn and key switch
- Automatic braking (Dynamic regenerative)
- Automatic parking brake (Electro-mechanical)
- Splash proof electronics
- Release brake drive inhibit
- Charge mode drive inhibit
- Throttle fault inhibit
- On-Board battery charger
- Free-wheel mode
- Heavy duty articulated transaxle drive
- Two 35 amp maintenance free batteries
- Category: Material Handling Equipment
- Eligible for UPS: No
- Final Weight: 1020
- Freight Class: 70
- Hand Controls / Foot Controls: Hand Controls
- Height Lowered: 18.25
- LPI Part Number: LPMC-24
- Lockstep Type: N/A
- Overall Packaging Height: 60
- Overall Packaging Length: 57
- Overall Packaging Width: 30
- Platform Height: 42.25
- Platform Length: 41
- Platform LxW: 41" x 26"
- Platform Width: 26
- Recommended Freight Method: LTL
- Ship From Location: Waupun
- Shipping Dims. LxWxH: 57 x 30 x 60
- Shipping Weight: 1020
- Skid Dims: 57 x 30 x 7
- Skid Height: 7
- Skid Length: 57
- Skid Width: 30
- Sub: 4
- Subcategory/Type: Lift Table
- Tread: N/A
- Weight Capacity: 3000
