Designed to tilt wire baskets, containers, tubs, and boxes or anywhere where tilting will allow easier access to retrieving or placing parts into a container. The adjustable height base frame has an 18" - 22" height adjustment. The manual pump tilt is an economical solution to placing the container at the correct tilt angle for the best ergonomic solution. An optional caster can be added to the tilter (adding an additional 7-1/2" to the height). A 4" lip is standard on all models, and custom lips are available. Side edges to contain the load. Fork pockets are standard. • capacity: 2,000 pounds. • platform size: 24" wide x 36" long • adjustable height: 18"-22". • degree of tilt angle: 0°-40°. • tilt adjustment 1° per pump and tilt range of 0°-40°. • dual pump levers for easy adjustment. • shipping weigh: 200 pounds.
Pinch To Zoom
Model #: BM-META-2K-4852-H

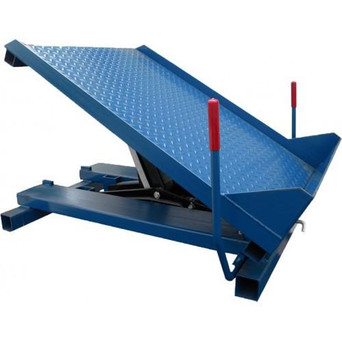

Maxx-Ergo-Tilter-Adjustable 2K Capacity 48x52 Hand Controls
Log in for pricing
Shipping Details
Purchases are for commercial businesses only. We will not ship to personal residence.
- Capacity: 2,000 pounds
- Platform Size: 24" x 36"
- Adjustable height: 18"-22"
- Degree of tilt angle: 0°-40°
- Tilt Adjustment 1° per pump and tilt range of 0°-40°
- Dual Pump Levers for easy adjustment
- Shipping Weight: 200 pounds
- Category: Material Handling Equipment
- Eligible for UPS: No
- Final Weight: 250
- Freight Class: 70
- Hand Controls / Foot Controls: Hand Pump
- Height Lowered: 18 - 22
- LPI Part Number: LPDW-5-20-AH
- Lockstep Type: N/A
- Overall Packaging Height: 24
- Overall Packaging Length: 50
- Overall Packaging Width: 48
- Platform Length: 52
- Platform LxW: 52" x 48"
- Platform Width: 48
- Recommended Freight Method: LTL
- Ship From Location: Kentucky
- Shipping Dims. LxWxH: 50 x 48 x 24
- Skid Dims: 50 x 48 x 7
- Skid Height: 7
- Skid Length: 50
- Skid Width: 48
- Sub: 4.00
- Subcategory/Type: Lift Table
- Tilt: 0-35°
- Tread: N/A
- Weight Capacity: 2000
