  • Maxx-Ergo-Tilter-Standard 3K Capacity 36x32 Hand Controls
Pinch To Zoom
Model #: BM-MET-3K-3632-H

Maxx-Ergo-Tilter-Standard 3K Capacity 36x32 Hand Controls

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

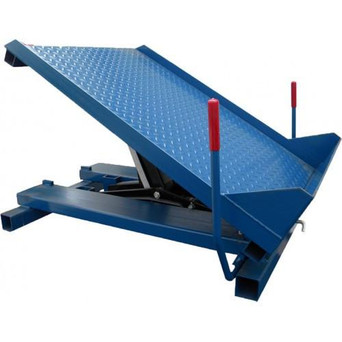

The Maxx-Ergo Tilters are designed to tilt totes, containers, tubs, wire baskets, and boxes or anywhere where tilting will allow easier access to retrieving or placing parts into a container. The manual pump tilt is an economical solution to placing the container at the right tilt angle for the best ergonomic solution. With a tilt range of 0-35° and capacity of 2,000-3,000 lbs. The ergo-tilter series can handle most applications. The base model has a lowered height of 9". The adjustable height base frame has a height adjustment of 18" - 22". Optional caster can be added to either the standard or adjustable height models (adding an additional 7-1/2" to the height). A fixed raised base can be ordered. A 4" lip is standard on all models and custom lips are available. Fork pockets are standard on all models. New air bag powered option.
  • Tilt Range: 0° - 35°
  • Tilt Adjustment 1° per pump
  • Dual Pump Levers for easy adjustment
  • Manual Lowering control valve
  • Side edges to contain load
  • Fork Pockets
  • 4" Lip on hinged ends
  • Diamond tread deck
  • Category: Material Handling Equipment
  • Eligible for UPS: No
  • Final Weight: 180
  • Freight Class: 70
  • Hand Controls / Foot Controls: Hand Pump
  • Height Lowered: 8.25
  • LPI Part Number: LPDW-2-30
  • Lockstep Type: N/A
  • Overall Packaging Height: 20
  • Overall Packaging Length: 48
  • Overall Packaging Width: 40
  • Platform Length: 32
  • Platform LxW: 32" x 36"
  • Platform Width: 36
  • Recommended Freight Method: LTL
  • Ship From Location: Kentucky
  • Shipping Dims. LxWxH: 48 x 40 x 20
  • Skid Dims: 48 x 40 x 7
  • Skid Height: 7
  • Skid Length: 48
  • Skid Width: 40
  • Sub: 4.00
  • Subcategory/Type: Lift Table
  • Tilt: 0-35°
  • Tread: N/A
  • Weight Capacity: 3000
