  • Stainless Galvanized "U" Lift Table 3.3K Capacity 60x56 Hand Controls
Pinch To Zoom
Model #: BM-GUSS-3.3K-34R-6056-H

Stainless Galvanized "U" Lift Table 3.3K Capacity 60x56 Hand Controls

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

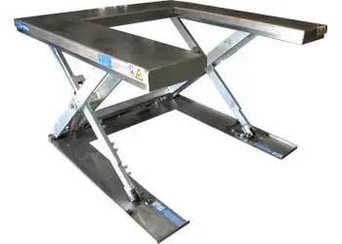

The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp. The stainless steel galvanized Guardian U-Lift tables have all the safety features of our low profile Guardian Series lift tables with these additional features: • stainless steel platform & base • cold galvanized scissor frame assembly • stainless steel pins • steel-it epoxy cylinders • ip55 electrical connections • remote power unit (rpu)
  • Load and unload pallets without the need for a loading ramp
  • Meets and exceeds both U.S. (ANSI) and EU safety standards
  • Upper platform fitted with safety perimeter which prevents descent on contact
  • Low-tension (24V) control box with up-down buttons
  • Electric circuit reset button in case the safety perimeter is actuated
  • External power pack equipped with a relief valve against overloading
  • Compensated flow valve for controlling lowering speed
  • External power pack is supplied with 8' long hoses
  • Upper limit switch
  • Designed for use with a 21" wide pallet jack
  • 115 voltage single phase standard, 230/460 voltage three phase available
  • Single acting cylinders with drainage system
  • Check valve to stop the lift table lowering in case of hose burst
  • Safety clearance between scissors to prevent trapping during operations
  • Mechanical blocks for safe maintenance operations
  • Self-lubricating bushings on pivot points
  • Removable lifting eye(s) to facilitate installation of the lift table
  • Category: Material Handling Equipment
  • Eligible for UPS: No
  • Final Weight: 700
  • Freight Class: 70
  • Hand Controls / Foot Controls: Hand Controls
  • Height Lowered: 3.625
  • LPI Part Number: LPBLU-30-1-SG
  • Lockstep Type: N/A
  • Motor HP: 1
  • Overall Packaging Height: 24
  • Overall Packaging Length: 60
  • Overall Packaging Width: 60
  • Platform Height: 33.125
  • Platform Length: 45.625
  • Platform LxW: 45.625" x 59.875"
  • Platform Width: 59.875
  • Recommended Freight Method: LTL
  • Ship From Location: Waukesha
  • Shipping Dims. LxWxH: 60 x 60 x 24
  • Skid Dims: 60 x 60 x 7
  • Skid Height: 7
  • Skid Length: 60
  • Skid Width: 60
  • Sub: 4.00
  • Subcategory/Type: Lift Table
  • Time to raise: 25
  • Tread: N/A
  • Vertical Travel: 29.5"
  • Weight Capacity: 3300
